Crypto volatility isn’t a feature, it’s reality. In markets where prices can swing 15% in hours, traders need more than directional guesses. They need tools that measure volatility itself.
That’s where the Average True Range (ATR) indicator comes in. In this guide, we’ll explain how ATR works, walk through its formula, cover key timeframes and the practical differences between ATR and ATRP, and show how traders use it for risk control while avoiding common crypto-specific mistakes.
Table of Contents
What Is the Average True Range in Crypto?
The Average True Range (ATR) is one of the most practical tools available when it comes to measuring volatility in cryptocurrencies. J. Welles Wilder Jr. introduced it in his 1978 book New Concepts in Technical Trading Systems. He originally designed ATR for commodities like gold and oil, which also experienced sharp volatility spikes.
As a technical analysis indicator, ATR does not tell traders which direction price will move. Instead, it measures how much an asset typically moves over a given period. On a daily or hourly chart, ATR shows the scale of recent price fluctuations, not the direction of the next move. It doesn’t forecast trends. It highlights the level of volatility traders need to manage.
That makes ATR a core risk management tool, especially for assets as volatile as cryptocurrencies. Because it helps quantify typical price movement, traders often use it to set stop-losses and size positions. In crypto markets, where sudden swings are common, ATR is a standard way to calibrate exposure and control risk.
Why Crypto Traders Use ATR
In fast-moving crypto markets, ATR helps traders measure volatility and adjust position size and stop-loss placement accordingly. It helps them distinguish calmer periods from more chaotic ones and refine risk parameters in real time. That contrast—low ATR versus high ATR—is central to how traders use ATR to manage market risk.
Low ATR Means Calmer Market Movement
A falling ATR reading indicates that price movements are becoming smaller from one candle to the next. This usually happens when momentum cools, consolidation begins, or the asset moves into a tighter trading range. Low ATR reflects lower volatility, not a change in trend direction.
For example, after a price rise, a market may begin to consolidate and ATR may start to fall. As volatility contracts, price swings become smaller and tighter. Rather than treating that as a buy or sell signal, traders use low ATR to adjust their expectations for a quieter market. That often means using closer stops, reducing position size, or preparing for sideways price action. ATR does not generate buy or sell signals on its own. It only measures the magnitude of volatility.
A low ATR environment does not mean an entry opportunity is present, and it does not predict which way the market will break. It only suggests that until volatility expands again, price action may remain contained. That is useful information for managing risk and timing strategies.
High ATR Means Wider Market Swings
When ATR spikes, it signals that the market is experiencing sharp price jumps and larger-than-usual candles. This expansion in volatility often follows news events, strong trend moves, or sudden shifts in sentiment. As volatility rises, ATR rises with it.
Traders treat high ATR as a cue to adapt. Instead of increasing position size or chasing entries, they often reduce exposure. They may also widen risk buffers, since tight stop-losses are easier to trigger in volatile conditions.
A higher ATR does not indicate whether price will move up or down. It only shows that larger moves are taking place. By recognizing those conditions, traders can avoid overcommitting during unpredictable periods and better align their strategies with the market’s volatility profile.
How to Get Free Crypto
Simple tricks to build a profitable portfolio at zero cost
What ATR Can and Cannot Tell You
The Average True Range is useful for reading recent market turbulence, but it is not built to predict what comes next. Like all technical indicators, it works best when traders use it to describe current conditions rather than forecast future ones.
- ATR is a lagging indicator by design. It is built from past true ranges. When Bitcoin surges 15%, ATR reacts after the move, not before it.
- ATR does not predict the next candle. If ATR trends higher, that means volatility is expanding—not that price will rise or fall.
- ATR shows the scale of volatility changes. If ATR rises from 4 to 10 over five days, traders know volatility has expanded. That can help with stop placement or sizing, but not with directional bias.
- ATR supports risk control, not a full strategy by itself. Traders often use it to frame possible price ranges between entry, stop, and target rather than to generate trade signals.
Many trading platforms state this clearly: ATR does not predict price direction. Traders should pair it with other tools instead of treating it as a standalone edge.
The Core Building Block: True Range
True Range (TR) is the foundation of the ATR calculation. It is calculated for each candle and captures volatility within a single period using OHLC data. It also adjusts for gaps between periods, which makes it more useful than a simple candle range.
What True Range Means
True Range is the calculation that captures the market’s largest meaningful move during a trading period. It does more than measure the distance from high to low. It also includes gaps and abrupt moves between sessions.

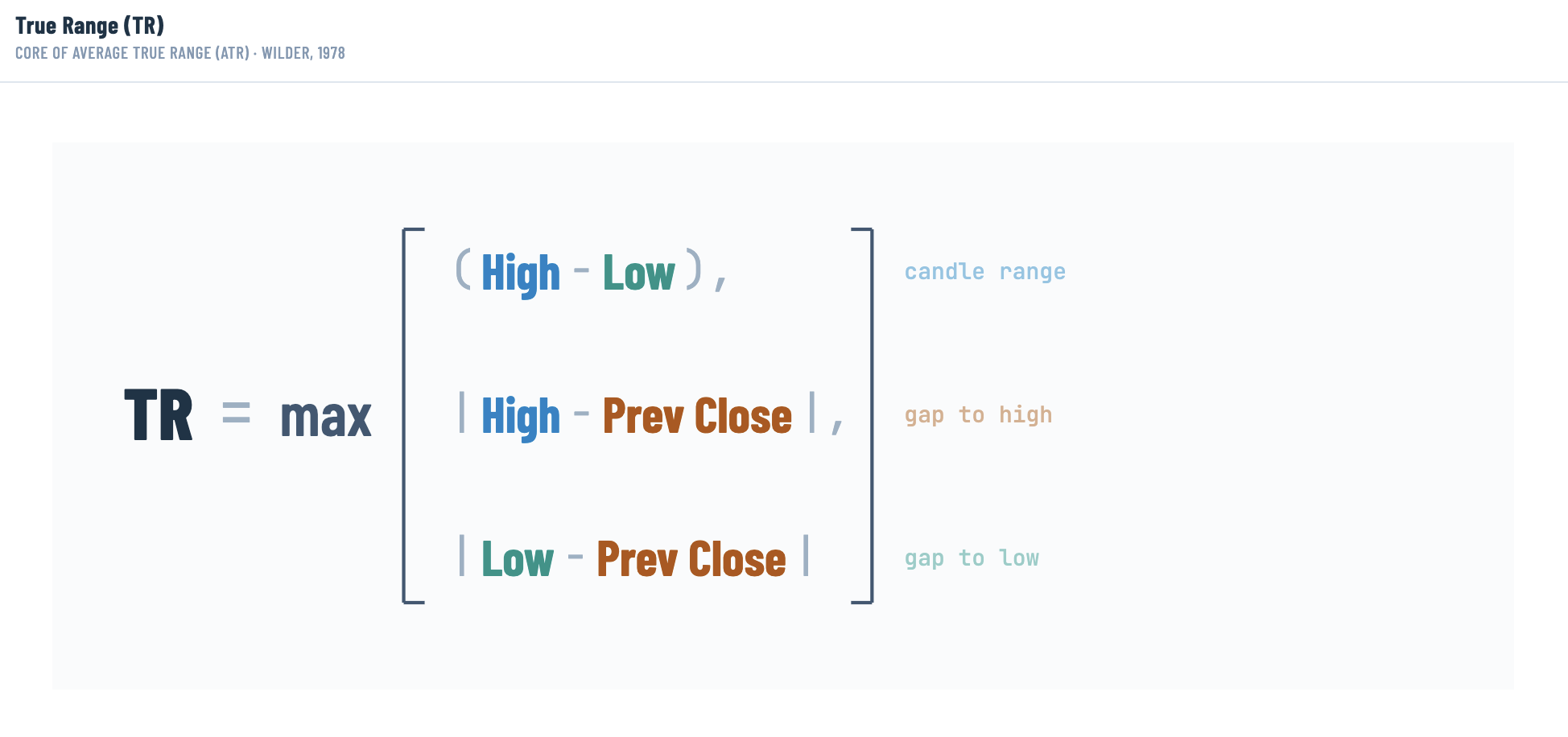

True Range is defined as the greatest of three values: the current high minus the current low, the absolute value of the current high minus the previous close, and the absolute value of the current low minus the previous close. This lets it account for sudden price jumps or gaps automatically.
A new TR value is calculated for each candle—hourly, daily, or minute by minute—and then averaged to form the ATR. That process ensures the final ATR reading reflects both spikes and lulls in volatility.
High Price, Low Price, and Previous Close
To calculate True Range and ATR, you need three values from a standard Open, High, Low, and Close (OHLC) candle:
- High price: The highest price reached during the candle.
- Low price: The lowest price reached during the candle.
- Previous close: The closing price of the prior candle.
Together, these inputs allow TR to capture both movement inside the current candle and any gaps from the previous one. That is what makes it a more complete volatility measure.
Why True Range Is More Useful Than a Simple High-Low Range
A simple high-low range measures the distance from the top of a candle to the bottom. That works when the price moves smoothly within the same session. But it can miss important moves between periods.
True Range improves on that by comparing the current candle with the previous close. A simple high-low range ignores gaps, while True Range captures them.
That adjustment matters because sudden moves between periods can still trigger stop-losses, liquidations, and major risk events. True Range helps prevent that volatility from being overlooked.
How True Range Captures Gaps and Sudden Jumps
Imagine a token closes at $100, then the next candle opens at $110 and trades as high as $115. A simple high-low range would record only a $5 move. It would miss the full jump from the previous close.
True Range changes that. If the previous close was $100 and the next candle ranges between $110 and $115, the simple high-low range is $5, but True Range captures the larger move of $15. That makes ATR more responsive to fast markets and more realistic for traders managing crypto volatility.
ATR Formula
The ATR formula takes price data from each candle, applies the True Range calculation, and then smooths the result over time. The process follows five main steps.
Step 1: Find the Current High Minus the Current Low
Start with the highest and lowest traded prices in the candle. Subtract the low from the high to get the candle’s basic trading range. This is the first possible True Range value. It measures the full price spread inside the candle itself.
Step 2: Compare the Current High With the Previous Close
Next, calculate the difference between the current high and the previous close. Then take the absolute value. This captures upward gaps or strong moves that extend beyond the candle’s internal high-low range.
Step 3: Compare the Current Low With the Previous Close
Then calculate the difference between the current low and the previous close.
Take the absolute value here as well. This captures downward gaps and sharp drops between periods.
Step 4: Choose the Largest Value as True Range
After calculating all three values, choose the largest one. That becomes the True Range for the period. This is the rule:
This formula ensures the largest meaningful price move is always captured.
Step 5: Average or Smooth True Range Into ATR
Once you have a series of True Range values, average them over a chosen period, often 14 candles. For the first ATR value, that is a simple average.

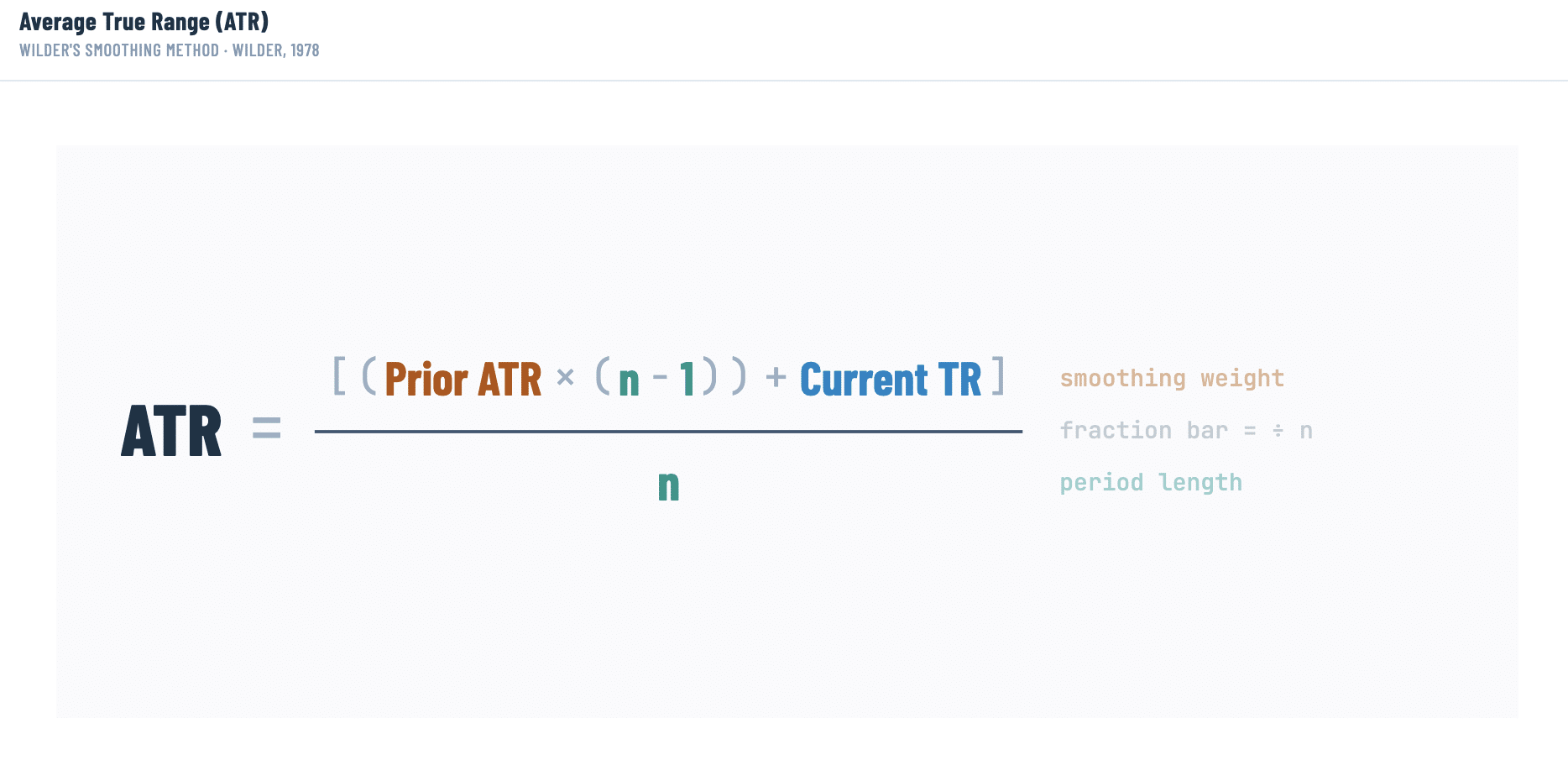

After that, ATR is smoothed using Wilder’s formula:
Here, n is the number of periods. This smoothing method helps ATR stay stable enough for real-time use while still responding to changing volatility.
The 14-Period ATR Setting
Most trading platforms use a 14-period ATR setting by default, following Wilder’s original approach. That means the indicator reflects the average volatility of the last 14 candles, whether those candles are minutes, hours, days, or weeks.
Shorter ATR settings react faster to new volatility, but they can also produce noisier readings. Longer settings create a smoother curve, but they react more slowly. Traders choose between speed and stability based on their strategy.
Because ATR does not generate trade signals, choosing the right setting is mostly about matching the indicator to your trading timeframe and risk model. For many traders, 14 periods remains a useful default because it balances responsiveness with stability.
Shorter ATR Settings: Faster but Noisier
Shorter ATR lookbacks, such as 5 or 7 periods, respond quickly to fresh volatility. They can highlight sudden expansions in price movement almost immediately.
The downside is noise. With a smaller sample, ATR can swing more sharply, and a single large candle can distort the reading. That can make it harder to tell the difference between a lasting shift in volatility and random market noise.
As a result, shorter settings may suit active day trading or breakout strategies, but they usually work best with additional confirmation tools.
Longer ATR Settings: Smoother but Slower
Longer ATR settings include more price history, so they smooth out smaller fluctuations more effectively. That can help traders focus on broader volatility trends instead of reacting to every short-term swing.
The trade-off is slower response. Sudden changes in market conditions take longer to show up in the indicator. For traders focused on longer trends and broader risk management, that can be useful. For short-term traders, it may be too slow.
ATR Across Crypto Timeframes
ATR works across all chart timeframes, from 5-minute charts to weekly or monthly charts. Because it measures volatility rather than direction, traders use it differently depending on the timeframe they trade.

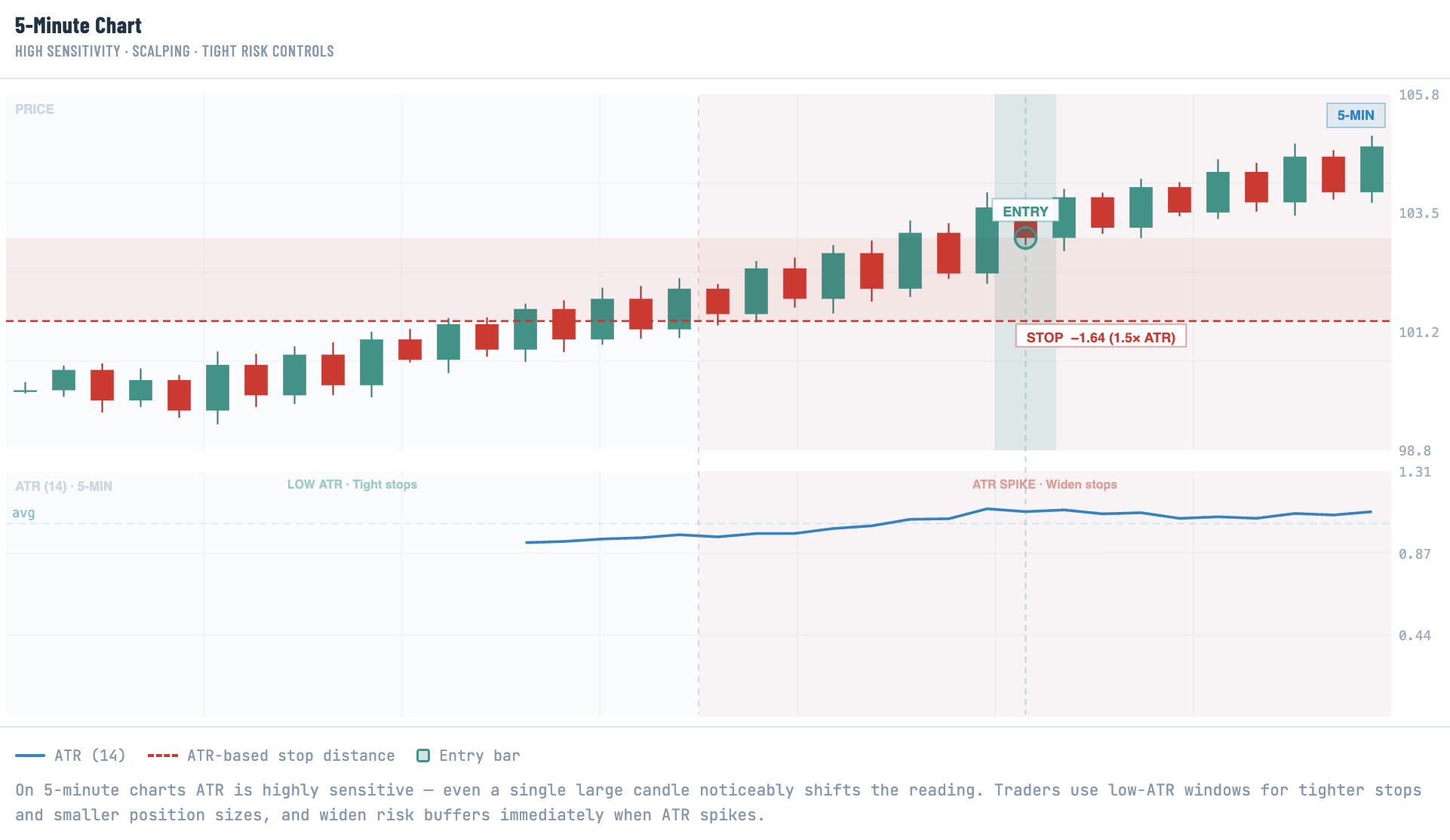

ATR on 5-Minute and 15-Minute Charts
Shorter timeframes such as 5-minute and 15-minute charts are common among scalpers and other short-term traders. ATR on these charts reflects immediate volatility and can help with tight risk controls and quick trade adjustments.
Because ATR is highly sensitive on short timeframes, even brief spikes or dips can change its reading noticeably. In these conditions, high ATR may encourage traders to widen stops or reduce position size, while low ATR may support tighter risk parameters.

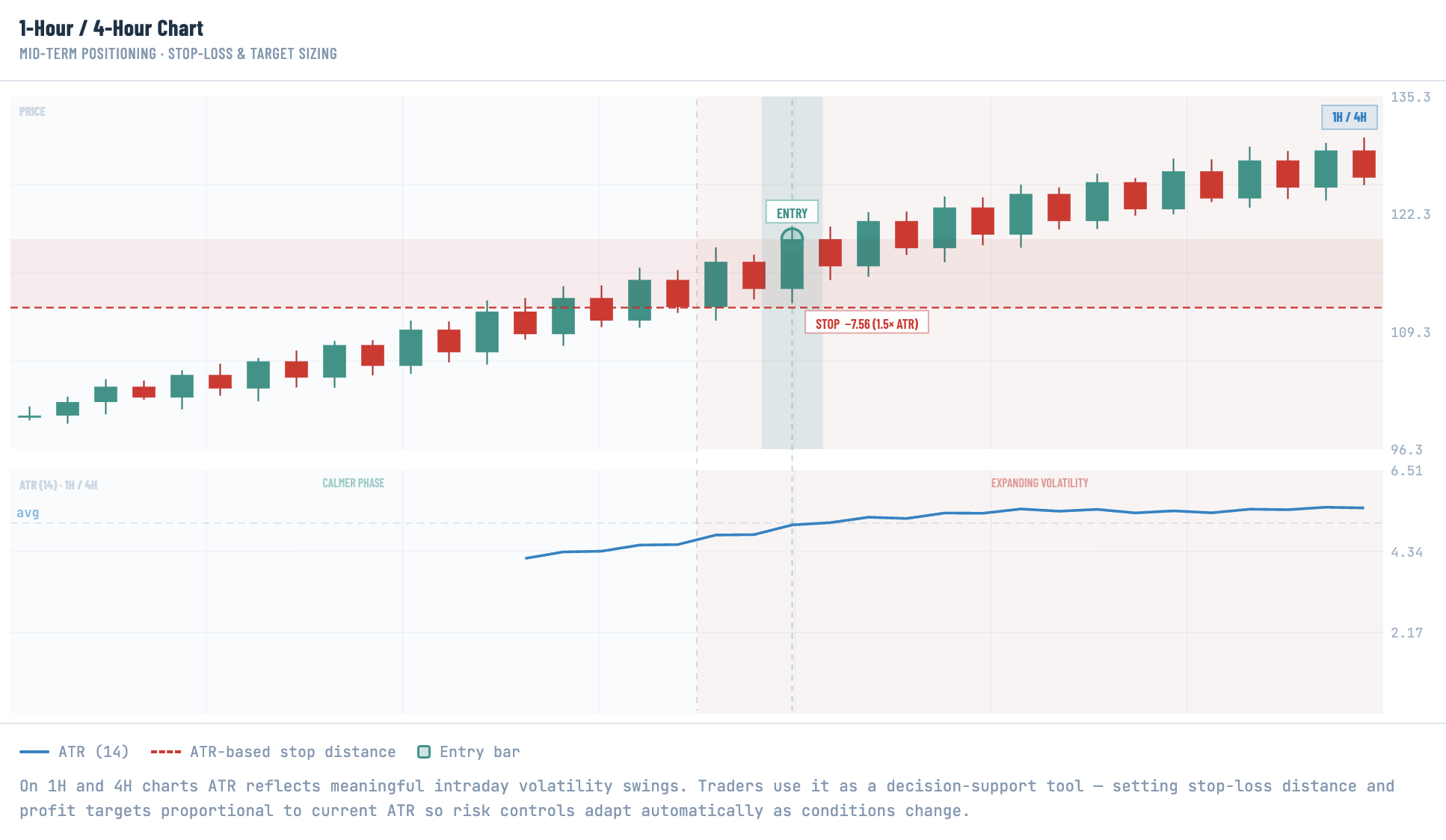

ATR on 1-Hour and 4-Hour Charts
Many traders use 1-hour and 4-hour charts as a middle ground between fast execution and longer-term positioning.
On these timeframes, ATR can help traders set stop-loss distance and profit targets based on current volatility without trying to predict exact price direction. It serves as a decision-support tool for managing exposure over longer holding periods.

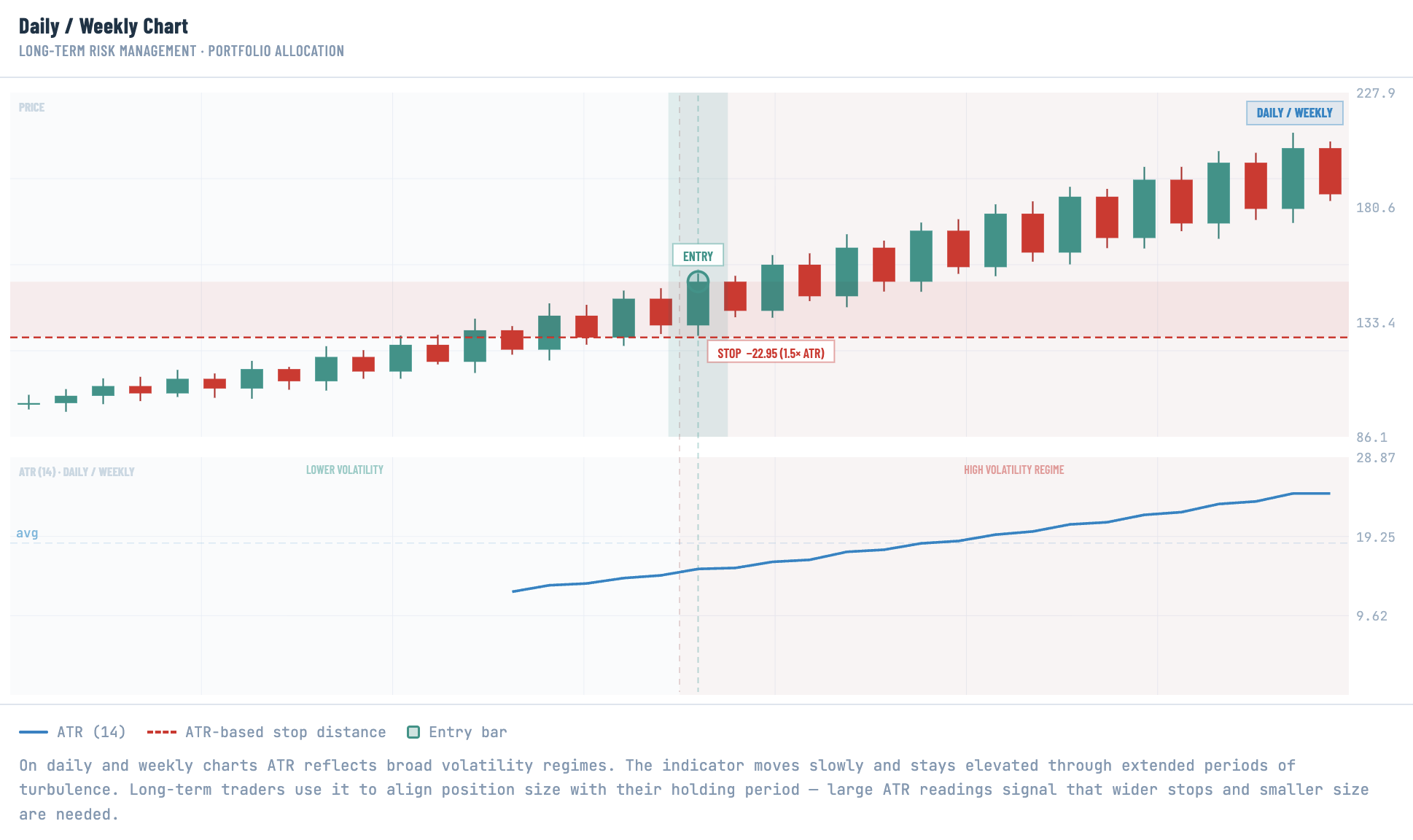

ATR on Daily and Weekly Charts
On daily and weekly charts, ATR reflects broader volatility conditions. These readings can help traders understand the overall volatility regime affecting trend-following systems, portfolio allocation, and long-term risk management.
Longer-timeframe ATR can help traders align position size and risk exposure with their holding period. That makes it especially useful when volatility rises and larger moves can affect outcomes more quickly than expected.
How to Read ATR in Crypto Markets
ATR rises when price movement expands and falls when price movement contracts. In crypto markets, that makes it useful for adjusting stop-losses, position size, and trade expectations.

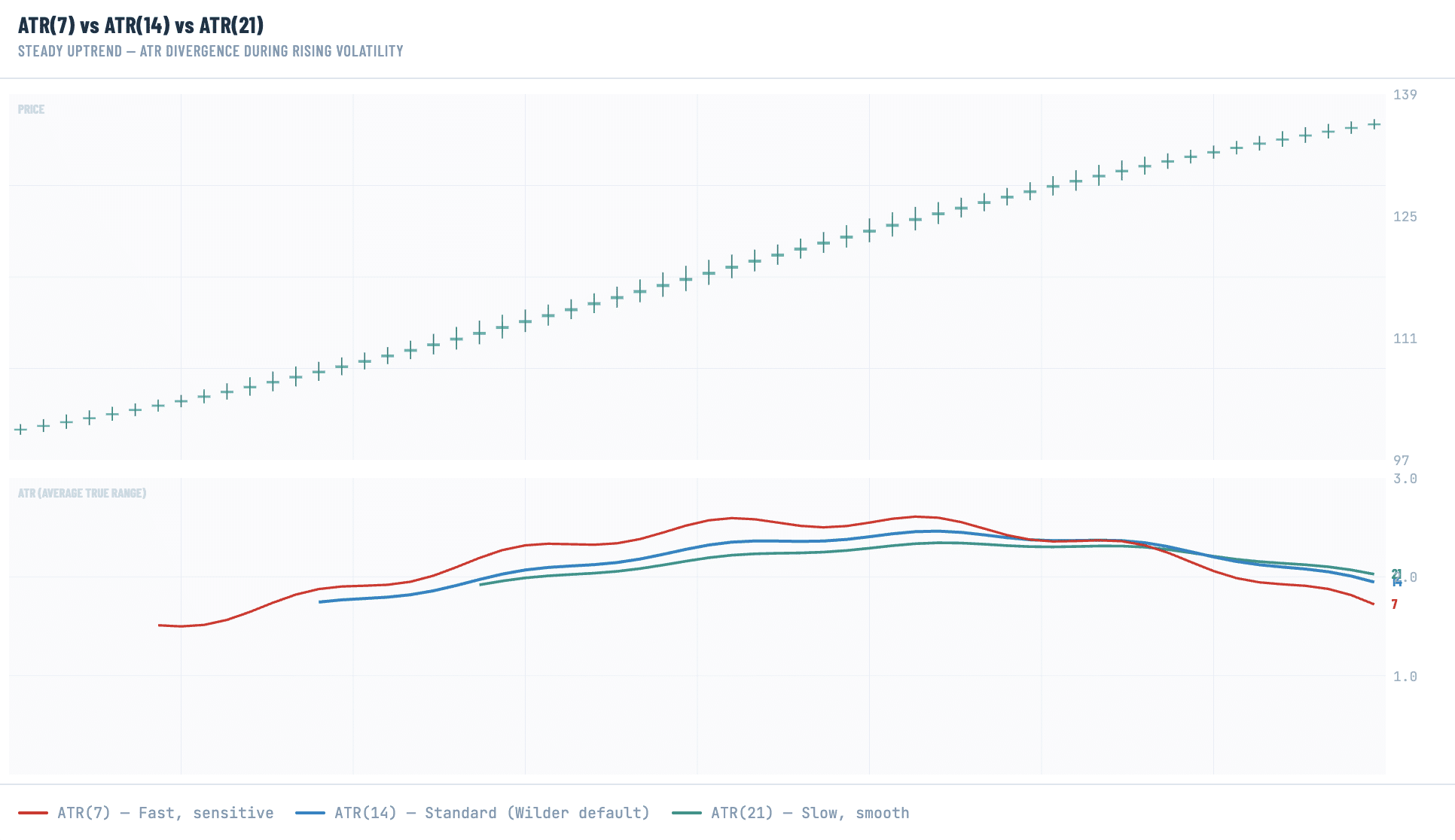

Rising ATR: Volatility Is Expanding
A rising ATR means price swings are getting larger. That increase acts as an alert, not a buy or sell signal.
As price movement stretches beyond the recent average, the ATR line climbs. Traders can use that information to recognize a higher-volatility environment and adjust risk controls accordingly.
Falling ATR: Volatility Is Cooling
A falling ATR means price swings are getting smaller. That usually reflects a quieter market environment.
In these conditions, traders may tighten risk parameters, but they should not treat falling ATR as a directional signal. It only shows that volatility is contracting.

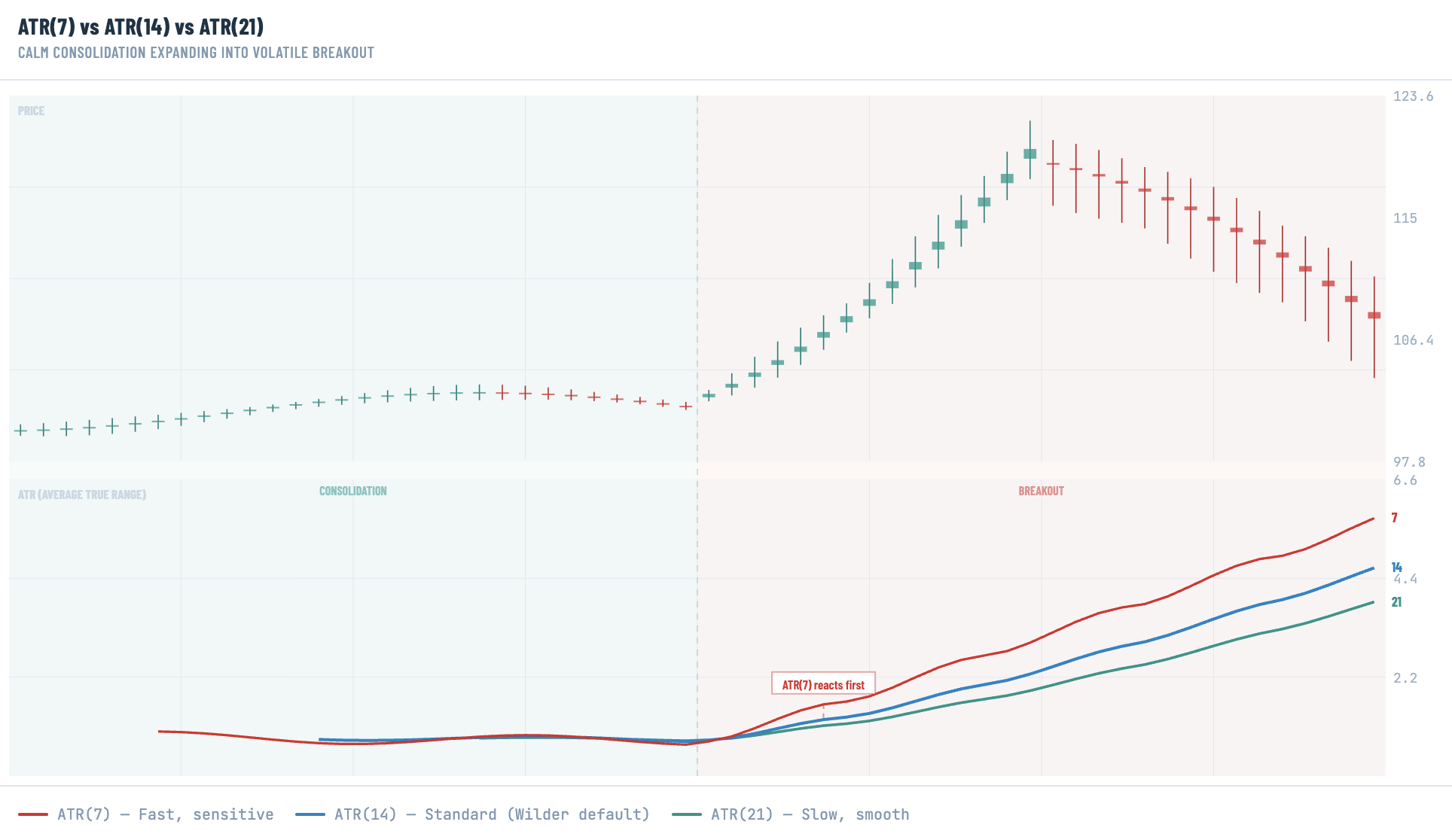

ATR During Consolidation
ATR can be less informative in sideways or range-bound markets. Volatility may rise or fall without a clear trend developing.
In those conditions, traders can misread ATR changes as early signs of a breakout. That is why ATR works best when paired with price structure analysis or other indicators.
ATR During Breakouts and Breakdowns
During breakouts and breakdowns, ATR can surge quickly because price movement expands sharply. That is common when markets react to regulatory news, exchange disruptions, or other major events.
These spikes can temporarily inflate ATR readings and affect how traders interpret future volatility. ATR remains useful, but traders should remember that sudden event-driven candles can distort it for a time.
ATR vs. ATRP
| Average True Range (ATR) | Average True Range Percentage (ATRP) | |
|---|---|---|
| Calculation basis | Measured in the asset’s own price units | ATR divided by price, expressed as a percentage |
| Units | Price terms, such as $55 | Percentage terms, such as 4.75% |
| Cross-asset use | Less useful across different price scales | Better for comparing assets with different prices |
| Risk management use | Helps set stops and position size in price terms | Helps compare volatility relative to price |
| Main strength | Useful within a single asset | Useful across assets and market cycles |
| Main limitation | Not ideal for cross-asset comparison | Slightly more complex to calculate and interpret |
ATRP normalizes ATR by expressing it as a percentage of the asset’s price. That makes it easier to compare volatility across tokens with very different price levels. For example, Bitcoin may have a larger raw ATR than Ethereum, while ATRP may show that Ethereum is more volatile relative to its own price.
Neither ATR nor ATRP should be used in isolation. Traders still need other tools to judge context and direction.
Raw ATR Is Measured in Price Units
Standard ATR is plotted in the same units as the asset’s price, such as dollars or USDT. A rising ATR means larger price swings, while a falling ATR means calmer conditions.
For example, with a 14-day ATR applied to Bitcoin, a daily ATR of $55 would mean the price moved an average of $55 per daily candle over that period.
BTC ATR and Altcoin ATR Are Not Directly Comparable
Raw ATR works well within a single asset but not across assets with very different price levels. A Bitcoin ATR of $500 and an altcoin ATR of $0.50 are not directly comparable because the two assets trade on completely different scales.
To compare them fairly, traders need to convert ATR into a percentage of each asset’s price. That is where ATRP becomes useful.
What Average True Range Percent Means
ATRP, or Average True Range Percent, solves the comparability problem by dividing an asset’s ATR by its closing price. That converts the reading into percentage terms.
This makes it easier to compare volatility across assets side by side, even when their raw prices differ dramatically.
ATRP Formula: ATR Divided by Close Price × 100
The ATRP formula is:
ATRP = (ATR ÷ Close Price) × 100
For example, if a token has an ATR of $1 and a closing price of $20, its ATRP is 5%.
That percentage makes it easier to compare how volatile one asset is relative to another.
When to Use ATRP Instead of ATR
Use ATRP when you need to compare volatility across multiple coins with different price levels. If you are rotating between Bitcoin, altcoins, and lower-cap tokens, ATRP gives you a more standardized view.
If you are focused on a single asset, ATR is often enough for setting stops and position size.
ATR-Based Indicators and Related Tools
ATR is a core input in several popular trading tools, including Supertrend and Chandelier Exit. Traders also often pair ATR with indicators such as ADX, RSI, and MACD to add context.
Supertrend Indicator and ATR Multiples
The Supertrend indicator uses ATR to create dynamic levels above or below price. Those levels adjust as volatility changes. Traders use Supertrend to help filter noise and identify when a trend may be strengthening or weakening.
Chandelier Exit and ATR Trailing Stops
The Chandelier Exit uses an ATR multiple and a recent lookback period to place trailing stops at a volatility-adjusted distance from price. This helps traders stay in strong trends while reducing the chance of being stopped out by smaller fluctuations.
ADX: Another Wilder Indicator
The Average Directional Index (ADX) is another indicator Wilder introduced in his 1978 book. While ATR measures volatility, ADX measures trend strength. Used together, the two indicators can help traders understand both how strong a move is and how volatile the market has become.
RSI and MACD as Confirmation Tools
ATR shows how much the market is moving, but it does not show whether momentum favors buyers or sellers. That is why traders often pair it with tools such as the Relative Strength Index (RSI) and the Moving Average Convergence Divergence (MACD).
These indicators can help traders confirm whether volatility is supported by momentum rather than appearing in isolation.
Crypto-Specific Risks When Using ATR
Crypto markets trade 24/7 and lack the circuit breakers common in traditional markets. That makes them especially vulnerable to sudden ATR spikes. While ATR can help with position sizing, trailing stops, and risk allocation, traders also need to account for crypto-specific market structure risks.
Liquidation Cascades Can Distort ATR
A sharp move through a key level can trigger forced liquidations and produce outsized candles. Those candles can distort ATR readings and make conditions appear more volatile than usual.
That can affect how traders interpret subsequent ATR-based setups.
News Events Can Cause Sudden Volatility Spikes
Unexpected news can cause abrupt moves that expand ATR quickly. During these periods, ATR may reflect short-term reaction rather than a stable shift in market conditions. Traders often wait to see whether volatility settles before relying heavily on ATR again.
Thin Liquidity Can Make ATR Less Reliable
In low-liquidity markets, a single large order can create a candle that does not reflect normal trading conditions. That can make ATR less reliable and lead to poor decisions on entries, exits, or stop placement.
Exchange Differences and Wick-Heavy Candles
ATR depends on candle data, and that data can differ from one exchange to another. In crypto, wick-heavy candles and fragmented liquidity can create noticeable differences in ATR readings across platforms. Traders using ATR-based strategies should understand how their preferred exchange structures its data.
Stop-Loss Slippage in Fast Markets
ATR can help traders plan stops, but it cannot guarantee execution quality. In fast markets, stop orders may fill worse than expected. That means ATR is useful for planning risk, but traders still need to account for slippage in real execution.
Final Thoughts
ATR is a useful indicator for measuring average price movement over a given trading period. It helps traders assess volatility, but it does not predict price direction or guarantee future volatility levels. It reflects past market behavior.
That makes ATR especially valuable for risk management. It can help traders set better stops, size positions more thoughtfully, and understand whether market conditions are calm or turbulent. But it is not a standalone buy or sell indicator. Traders get the most value from ATR when they use it with other tools and with a clear understanding of what it can—and cannot—do.
FAQ
Is ATR Good for Crypto Trading?
Yes, but it works best alongside other indicators. ATR is useful in crypto because it helps traders avoid setting stop-losses too close in highly volatile markets. By measuring average movement size instead of direction, it helps keep risk controls adaptive.
What Is the Best ATR Setting for Crypto?
There is no single best ATR setting for crypto. It depends on your strategy and timeframe.
A 14-period ATR is the most common starting point and often works well for swing trading and broader portfolio analysis. Shorter settings, such as 7, respond faster but can produce more noise.
Does ATR Predict Bitcoin Price?
No, ATR does not predict Bitcoin’s future price. It only measures how much Bitcoin has moved on average over a given period. If Bitcoin’s ATR rises, that means volatility is increasing—not that Bitcoin will move up or down.
Is High ATR Bullish or Bearish?
Neither—high ATR is not bullish or bearish on its own. It only shows that price movement has become larger. High ATR can appear during both strong rallies and sharp sell-offs.
Can ATR Be Used for Altcoins and Memecoins?
Yes, but with caution. ATR can be useful for assets like DOGE and SHIB, but thin liquidity and extreme wicks can distort readings. In these cases, ATRP may help by expressing volatility as a percentage of price rather than in raw price units.
What Is the Difference Between ATR and ATRP?
ATR measures average movement in the asset’s own price units, such as $0.15 or $100. ATRP converts that same movement into a percentage of price. That makes ATRP more useful when comparing assets with different price scales, such as Bitcoin and XRP.
Should Beginners Use ATR With Leverage?
Beginners can use ATR to understand volatility, but leverage increases risk quickly. ATR may help them set safer stops and size positions more carefully, but only if they understand its limits.
The bigger risk is not the indicator itself. It is using it as though it predicts price direction.
Is ATR Better Than RSI or MACD?
No, ATR, RSI, and MACD do different jobs. RSI and MACD focus on momentum or trend behavior, while ATR focuses on volatility. Rather than replacing one with another, traders often use them together to get a fuller view of market conditions.
